Serratura 70091 Variator A Changeable lock with dead bolt for safes CEN 0-II.- Kaba Mauer

Description

Serratura 70091 Variator A Changeable lock with dead bolt for safes CEN 0-II.- Kaba Mauer

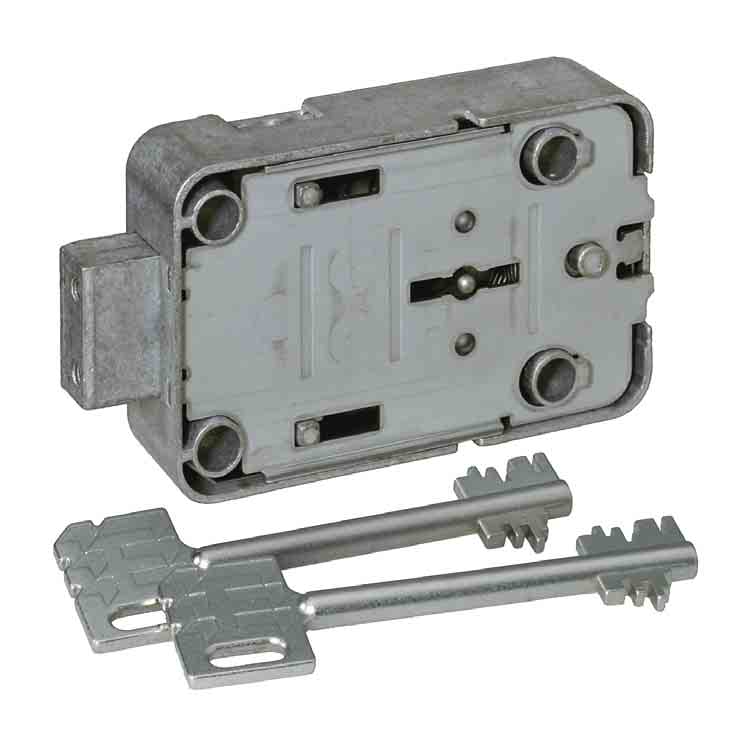

70091 Variator A – Keys included

Included 2 keys of 90mm Lenght
Changeable lock with dead bolt for safes CEN 0-II.
Approx. 280,000 theoretical variations.
Standard footprint.
User-friendly change from the front utilising a change activator i.e. without
having to dismantle the door covering or the openings in the door interior.
Change can however, also be initiated via a slide unit at the back of the lock.
The lock can be supplied in user or works locking mode.

General Features

Variator A – standard 70091

Specifications
Changeable lock
8 levers, electrolytic galvanised steel
Key retained when in open position
Die-cast lock case and bolt, throw 12 mm
Weight approx. 460 g
Admissible mounting positions
Right hand lock, opening clockwise

Approvals/Certificates

EN 1300 A, ECB-S, VdS class 1, CNPP a2p Niveau A, DNV, GOST class B, IMP class A, UL 437

Options, Accessories & Keys

Options
Microswitch for bolt monitoring (two-way contact)
Bolt with 2 M4 threads
Key pin projecting 9 mm
Lock case and bolt surface treated
Supplied in works locking mode
Left hand lock, opening counter-clockwise
Accessories
Lock fixing screw: cheese head screw galvanised, DIN 84 – BSW ¼“ x 32 mm – 4.8, securing ring
Mounting plate 2 mm thick with 4 M5 threaded bushings, screws and securing rings
Mounting plate 2 mm thick with manganese steel plate 1.5 mm thick, with 4 M5 threaded bushings,
screws and securing rings
