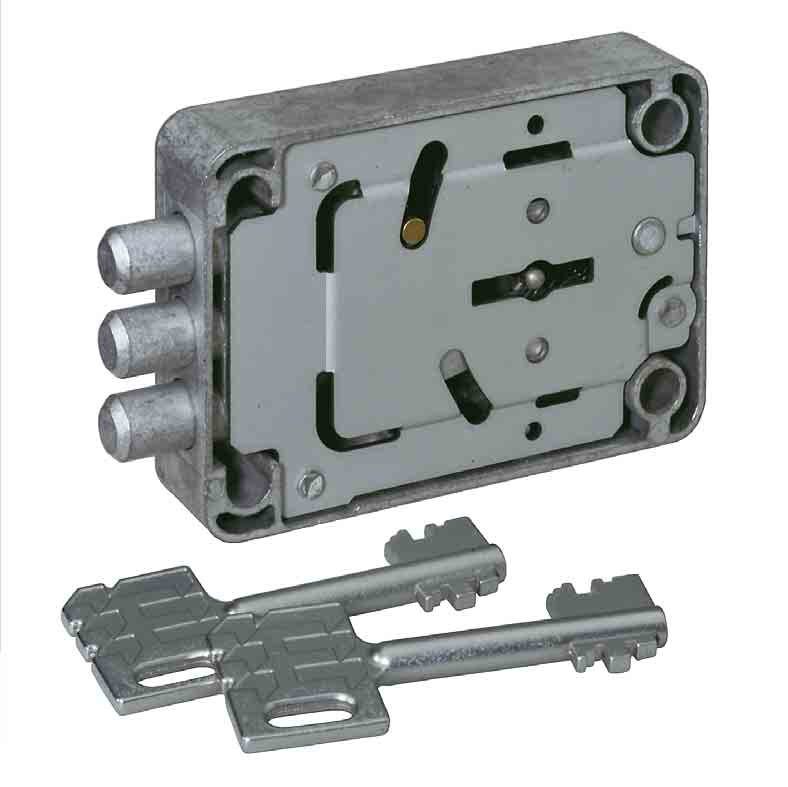

Serratura 73042 Tricontus A Lock with blocking bolts for safes CEN 0-II.- Kaba Mauer

Description

Serratura 73042 Tricontus A Lock with blocking bolts for safes CEN 0-II.- Kaba Mauer

73042 Tricontus A

Serratura 73042 Tricontus A Lock with blocking bolts for safes CEN 0-II.- Kaba Mauer

Lock with blocking bolts for safes CEN 0-II.
Approx. 280,000 theoretical variations.
The special triple bolt design facilitates direct locking into the safe closure.
The 73043 Tricontus lock is similar to the listed 73042 Tricontus A lock, but
offers additional options which exclude certification. For example “keyed
alike” or “non key retaining” versions are available.

General Features

73042 Tricontus A

Specifications
8 levers, electrolytic galvanised steel
Key retained when in open position
Die-cast lock case and bolt, throw 12 mm
Weight approx. 350 g
Admissible mounting positions
Right hand lock, opening clockwise

Approvals/Certificates

EN 1300 A, ECB-S, VdS class 1, GOST class A

Options, Accessories & Keys

Lock case and bolt surface treated
Locks keyed alike
Not key retained when in open position, not suitable for access doors
Key marked with permutation number
Accessories
Mounting plate 2 mm thick, with 4 M5 threaded bushings, screws and securing rings
Mounting plate 2 mm thick with manganese steel plate 1.5 mm thick, with 4 M5 threaded bushings,
screws and securing rings
