Serratura 74041 Centurio A Lock with flat bolt for safes CEN 0-II.- Kaba Mauer

Description

Serratura 74041 Centurio A Lock with flat bolt for safes CEN 0-II.- Kaba Mauer

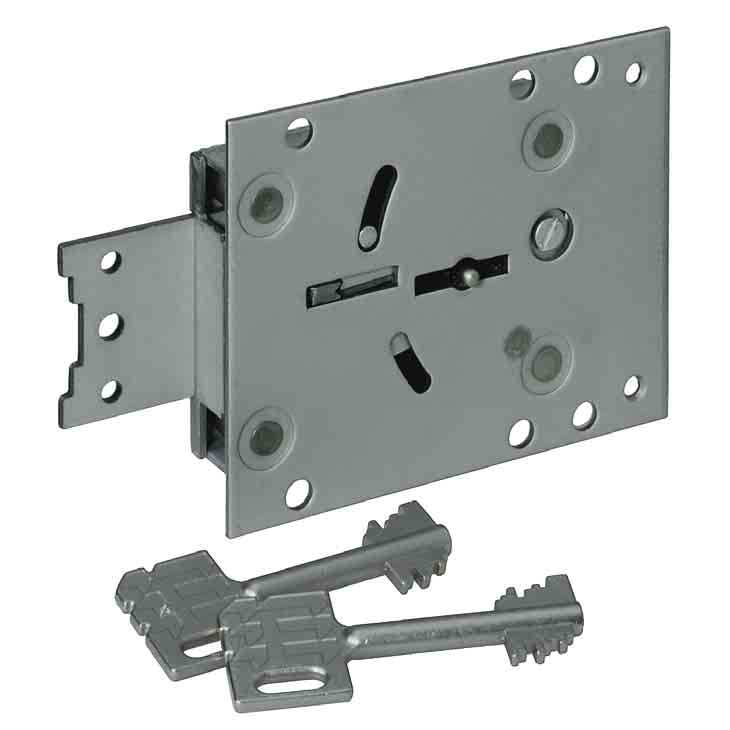

74041 Centurio A

Serratura 74041 Centurio A Lock with flat bolt for safes CEN 0-II.- Kaba Mauer

2 Keys of 65 mm Lenght
Lock with flat bolt for safes CEN 0-II.
Approx. 280,000 theoretical variations.
The lock cover can be used as a mounting plate and enables one to screw
or weld the lock directly on to the door. Angles can be fitted optionally to provide
screwed on or riveted connections to mount heavy duty blocking bolts.
The 74043 Centurio lock is similar to the listed 74041 Centurio A lock, but offers
additional options which exclude certification. For example “keyed alike”
or “non key retaining” versions are available.

General Features

74041 Centurio A

Specifications
8 levers, electrolytic galvanised steel
Key retained when in open position
Lock case and flat bolt electrolytic galvanised steel, throw 12 mm
Mounting plate (lock cover), electrolytic galvanised steel, 2 mm thick
Weight approx. 390 g
Admissible mounting positions
Right hand lock, opening clockwise

Approvals/Certificates

EN 1300 A, ECB-S, VdS class 1, GOST class A, IMP class A

Options, Accessories & Keys

Loose mounting plate (lock cover) 2 mm thick, with 4 M5 threaded
bushings, screws and securing rings
Manganese steel plate 1.5 mm thick, spot welded under mounting plate (lock cover)
Locks keyed alike
Not key retained when in open position, not suitable for access doors
Key marked with permutation number
Left hand lock, opening counter-clockwise
